I-Outdoor Energy Stores 216KWh

Uhlobo lokukhokha: T/T

Ukuthutha: Ocean

Get Latest Price

Xhumana Nanje

Izimfanelo Zomkhiqizo



Izimfanelo Zomkhiqizo

I-Model No.: RT-50KW216KWh

Ibhulogi: Umumo

Indawo Yemvelaphi: I-China

Capacity: 216KWh

DC Rated Voltage: 720V

Type Of Battery: OPzV2-300(2V300Ah)

Cycle Life: 3500

Rated Power: 50KW

Size: (2200*2450*1200)*2+(1000*1000*250)*1(mm)

Ukupakisha nokulethwa
Ukuthengisa Amayunithi	:	Set/Sets
Uhlobo lwephakheji	:	Icala lezinkuni

The file is encrypted. Please fill in the following information to continue accessing it

Incazelo yomkhiqizo



I-50kw216kkh ye-modular energy

Ukubuka konke komkhiqizo:

Lolu hlelo lwe -O N Grid Solar lungummeleli wemikhiqizo ehlelekile kakhulu futhi esezingeni eliphezulu, ngokusho komqondo wesitoreji sama -3 s (ephephile / oqinile / oqinile / smart) nezidingo zekhwalithi yemoto; Amandla we-ST STINGS, ahlanganise amandla amasha okuphehla amandla, ukukhulisa amandla akhulayo nokuphathwa kwezidingo, ukukhiqizwa okuvinjelwe kwe -DI , isipele samandla aphuthumayo, neminye imisebenzi, futhi isekela izixazululo ze -ev c .

Usebenzisa umqondo wokuqamba we- "BONKE KOKUTHOLA", IBHODI LOKUXHUMANISA I-BMS, i-BMS yokuphatha ibhethri, ama- PMS e -Transformer System, ama-EMS ahlanganiswe kwikhabethe elilodwa langaphandle langaphandle lokuhlelela futhi adlale i-Intelligent Energy block. Okuyisitoreji samandla esihlakaniphile impela Faka isicelo kuzinhlelo zokusebenza ezahlukahlukene hhayi kuphela uhlelo lokugcina amandla lwe-Photovoltaic .

Isicelo :

Uhlelo Lokugcina Amandla Okuhweba
Ukushintshwa kwamandla
Kuhlanganiswe ukukhiqizwa kwamandla okusha kwamandla
Amandla ashukumisayo - anda futhi afuna ukuphathwa
Uhlelo lwamandla we-microgid
Isizukulwane esisatshalaliswa
Isipele samandla aphuthumayo neminye imisebenzi
Sekela izimoto zikagesi ezisheshayo zokushaja

Isici:

Ukuphepha okuphezulu

Khetha ibhethri lekhwalithi ephezulu ye-OPZV enikezelwe ukugcinwa kwamandla, impilo yomjikelezo yezikhathi ezingaphezu kwama-3500.
Isilinganiso sokuvikelwa kwe-IP55 ukuze sihlangabezane nesidingo sezicelo zangaphandle.
IKhabinethi yeKhabinethi Ihlukanisa Ukuhlukaniswa Ukuhlukaniswa Kokuphepha Kokuphepha Nokulawula.

IMPILO ENDE

I-air conditioner air -cools yamukelwa ukuze kugcinwe ibhethri ngalinye endaweni yokushisa efanelekile yokuqinisekisa ukusebenza kwebhethri kanye nokuphila komjikelezo.
Idizayini yochungechunge olulodwa, ukulahleka kwamandla okufana kungukuthi 0.

Ukuhlanganiswa okuphezulu

Idizayini eyenziwe ngezindleko eziphansi ze-O & M, ukukhiqizwa okujwayelekile kokulethwa okusheshayo, kanye nezindleko eziphansi zempilo yempilo.
Ku-Finite Parallel uxhumano ungathola ukwanda okuningi kanye nokulungiswa kwe-modular okugcwele kwesiteshi samandla esitoreji samandla. Ukusekela izinhlelo zokusebenza ze-Multi-Scene kusuka ku- KW WH.

Ukucaciswa:

Model	EnerCube-50KW216KWh-OPZV-B
DC battery parameters
Types of batteries	OPzV2-300(2V300Ah)
Battery System Configuration	216KWh/1P360S
Battery voltage range	702~846V
Number of temperature measurements	12
AC Parameters
AC rated power	50KW
AC maximum power	55KW
AC current distortion rate	＜3%
DC component	＜0.5%lpn
Grid voltage range	380V/400V
Power factor	-0.9~+0.9
Rated grid frequency	50Hz/60Hz
System parameters
Maximum system efficiency	≥81%
Charge/discharge ratio	≤0.25C
The depth of discharge	80%DOD
Cycles	>3500
Communication interface	CAN/RS485/LAN
Protection grade	IP55
Type of cooling	Air conditioning air cooling
Operating temperature	-35℃~+55℃
Relative humidity	5~95%RH, No condensation
Noise	＜70dB
Altitude	＜2000m

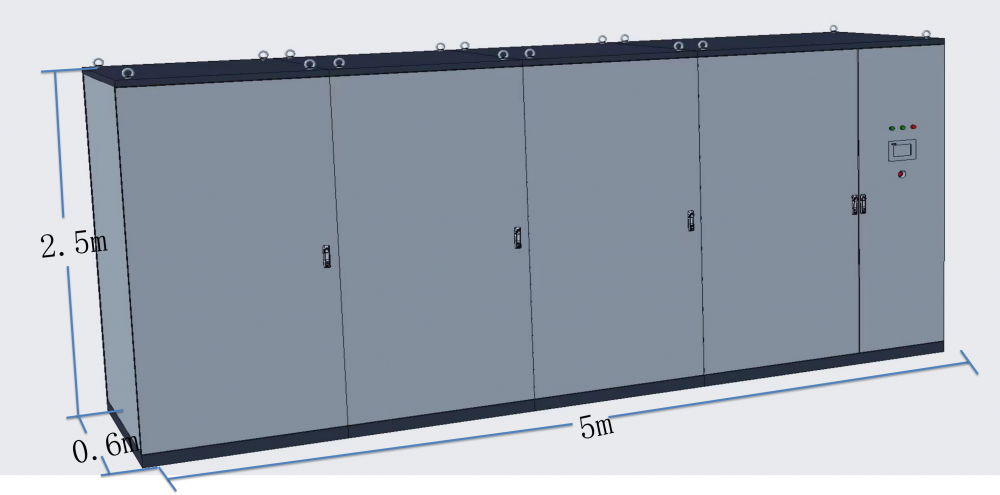

Size(WHD)	(220024501200)2+(10001000250)1(mm)
Firefighting system	Aerosol
Weight	10000kg
