Uhlelo lokugcina amandla oluphethe amandla 3440KWWh

I- PRoduct Overview:

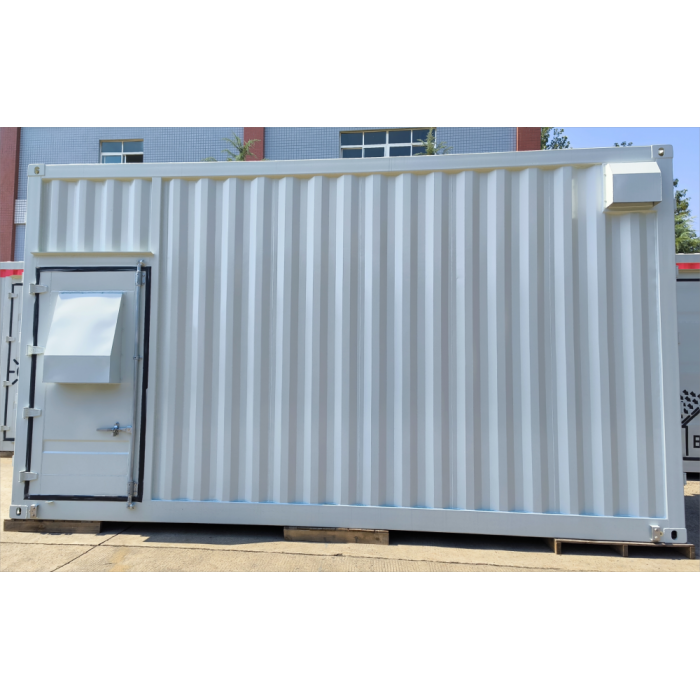

Kwethulwa i-LH-ESSC-Y6S-3440, isixazululo sokusika-onqenqemeni sohlelo lokugcina oluzinzile lwamandla oluguqula uhlelo lweGridi Solar, ku-Grid Solar Sytem kanye neGridi Scale Energy Storage. Uhlelo lwethu lokugcina amandla lwentengiso luzokwenziwa ukufeza izimfuno zezinhlelo zokusebenza ze-off-grid, ziqinisekisa ukunikezwa kwamandla okungaphazamiseki ngisho nasezindaweni ezikude kakhulu.

Izicelo:

Uhlelo lwe-Off Grid Solar Electricly System lwethu lwenzelwe ukunakekela izicelo ezahlukahlukene:

• Cishile Ama-Grid Solar Electric Systems: ahlanganisa ngaphandle komthungo imithombo yamandla evuselelekayo ngesisombululo sethu sokugcina amandla, ehlanganisa amandla eLanga ngokuzinzile kwe-off-grid ehlala.
• Isitoreji Esikhulu Sokugcina Amandla: Ilungele imikhakha yezimboni nezentengiso, lolu hlelo lunikeza umthamo omkhulu wokugcina, ukusekela imisebenzi eqhubekayo ngesikhathi sokuphuma kwegridi.

Izici:

• Ukushintshwa kakhulu: I-LH-ESSC-Y6S-3440 iqhosha i-Flexible Oppeating Voltage Range, ukuvumela ukwenza ngokwezifiso okulula ukuze kuvumelane nezidingo zakho ezithile.
• Ukwakheka okuqinile: Sebenzisa ubuchwepheshe be-cell cellence ye-LFP, lolu hlelo lunikeza isixazululo esiqinile nesithembekile sokugcina amandla.
• Ukupholisa okulungiselelwe: Ngokusakazwa kokupholisa uketshezi nokulawulwa kokushisa okukhaliphile, ukwakhiwa kwethu modular kuqinisekisa ukusebenza kwebhethri okuhle nokuphila isikhathi eside.
• Ukusebenza Nokuhleleka: Ngokulinganisa okusebenzayo okudlula ama-92%, uhlelo lwethu luqinisekisa amandla athembekile lapho uludinga kakhulu.
• Ukuqapha Okuthuthukile: Amapulatifomu okuqapha wendawo nesikude anikeza ukuqonda kwangempela kwesimo sakho sesikhathi sokugcina amandla, okuvumela ukuthatha izinqumo eziqhutshwa yidatha.
• Ezokuphepha kuqala: I-IP54 ilinganiselwe ukuvikela kanye ne-C4 ekalwe ukumelana nokugqwala, uhlelo lwethu luthuthuke ukumelana nezimo ezinzima.

Ukucaciswa:

Amapharamitha aseceleni we-DC:

• Uhlobo lweseli: LFP 3.2V 280h, umthamo olinganiselwe: 896Wh
• Ukusebenza kwamandla kagesi: 2.8v ~ 3.6V (Iyaguqulwa)
• Imodyuli yebhethri: 1p48s, 43.008 kWh
• Iqoqo lebhethri: Amamojula ayi-8 ochungechungeni, ama-1384, 344.64 kWh
• Inani lebhethri eliphelele: amaqoqo ayi-10 ngokufana, ama-10p384, 3.44 mwh
• I-voltage ekalwe (VDC): 1228.8
• Ukusebenza kwe-voltage ibanga (VDC): 1075.2 ~ 1382.4
• Ukushaja / Ukukhishwa kwesilinganiso: 0.5c
• Impilo Yesistimu: Imijikelezo engu-≥6000 (0.5c, 25 ° C, 90% ukujula kokukhululwa, 80% ukuphela kwempilo)
• Ukujula kokukhishwa: 0 ~ 100%
• Amandla alinganiselwe: 1720 kw
• Ukusebenza ngokweqile: Izikhathi eziyi-1.1 zesikhathi eside, izikhathi eziyi-1,2 zemizuzu engu-1
• Ukuhlanekezela okuphezulu kwenani: <3%

Amapharamitha wokulinganisa we-AC:

• I-Grid Voltage yegridi: 380VAC, -15% ~ 10% (ngezifiso)
• Imvamisa i-Grid Frequency: 50 / 60hz, ± 5hz
• Uhla lwe-Pover Factor oluguqukayo: -1 kuya +1

Amapharamitha Jikelele:

• Ubukhulu: 605824382896 mm
• Uhla lokushisa olusebenzayo: Ukushaja u-0 ° C50 ° C, ukususa -20 ° C50 ° C
• Uhla lokulawula lokushisa lwangaphakathi: 25 ± 5 ° C
• Ileveli yomsindo: ≤75DB @ 1m
• Indlela yokupholisa: Ukupholisa uketshezi

Uhlelo Lokuvikela Umlilo:

• Ileveli yokuvikela: IP54 (I-IP67)
• Izinga lokumelana nokugqwala: C4
• Umswakama ohlobene: 0 ~ 95% RH (UNOL-CLENLENFING)

Ukuphakama Okuphezulu : 4000m (Kuhlelwa ngenhla kwe-3000m)

Isisindo: cishe amathani angama-36

Izindawo zokuxhumana: Can, Rs485, Ethernet

Izivumelwano Zokuxhumana: Can, Modbus RTU, Modbus TCP / IP

Izwa ikusasa lokugcinwa kwamandla ngohlelo lwethu lwe-LH-ESSC-y6s-3440, ukuhlanganisa ubuchwepheshe obuhola phambili embonini, ukuguquguquka kobuchwepheshe, nokusebenza okungenakuqhathaniswa. Ukubopha amandla okugcina amandla ezinzile ezidinga usizo lwakho lwe-Off-Grid Energy. Futhi ujabulele izinzuzo zokuphakelwa kwamandla okungaphazanyiswa ezindaweni ezifunwa kakhulu.
