Uhlelo lokupholisa umoya wokupholisa amandla ngo-1500KWh

Ukubuka konke komkhiqizo:

Uhlelo lokugcina lwamandla lwe-LH-ESSC-F6S-1500 Air Cooding Energy Stored, isixazululo se-Smart Smart Energy Stored esenzelwe ukuqinisekisa ukuqina kokunikezela ngamandla. Lolu hlelo lwe-Off-Grid Solar Electric lunikeza uhlelo oluqinile futhi oluzinzile lokugcina amandla, okwenza kube ukukhetha okuhle kwezicelo ezahlukahlukene.

Izicelo:

Uhlelo lwe-LH-ESSC-FFS-1500 Energy Storage System luyisixazululo esiguquguqukayo esifanelekile kunhlobonhlobo yezicelo:

Izinhlelo ze-Off-Grid Solar Electric: Power Ukufakwa kwakho kwe-Off-grid yakho yelanga kahle nangokuthembekile.

Amasistimu wamandla weSolar: Ngcono ukusebenza kohlelo lwakho lwamandla elanga ngesitoreji samandla esinokwethenjelwa.

I-Inverter yegridi emincane : ihlanganisa ngaphandle komthungo ezinhlelweni ze-microgid ukuqinisekisa ukunikezwa kwamandla okungaphazamiseki.

Isitoreji samandla esihlakaniphile se-Smart: sebenzisa izisombululo ezihlakaniphile zokugcina amandla okuqina kwegridi.

Uhlelo lokugcina amandla oluzinzile: isipiliyoni esingaguquki futhi sizinzile sokugcina amandla okusebenza okubucayi.

Uhlelo lokugcina amandla lwe-PV: Khulisa izinzuzo zamandla we-Photovoltaic ngokugcina amandla amaningi.

Izici:

Amandla aphezulu: Ngomthamo we-1500kkwh, lolu hlelo lunikeza isitoreji samandla esanele sezidingo ezahlukahlukene.

Ubuchwepheshe bebhethri obuthuthukisiwe: Isebenzisa amaseli we-Lifepo4 ahlangabezana namazinga omhlaba we-International ukuphepha nokusebenza.

I-Modular Design: Amamojula webhethri nokusatshalaliswa kokupholisa koketshezi kuqinisekisa ukulawulwa kokushisa okusebenzayo.

Ukuphila isikhathi eside: Ukuphathwa kwebhethri kwebhethri kunwebisa impilo yohlelo, ngemijikelezo engaphezu kuka-6000.

Ukuqapha okukude: Ukuqapha izingxenye zohlelo ngesikhathi sangempela usebenzisa amapulatifomu endawo nekude.

Ukusebenza kwe-Intelligent: Yenza ukuhlaziywa kwedatha kanye nemininingwane yokufinyelela ngokusebenzisa isibonisi esihlakaniphile se-terminal.

Ukulayisha ngokweqile: Uhlelo lungaphatha ama-110% omthamo olinganiselwe ukusetshenziswa isikhathi eside kanye nama-120% okuqhuma okufushane.

Ukusebenza kahle okuphezulu: Kuthola ukusebenza kahle kwama-92% ukusetshenziswa kwamandla okulungele amandla.

Ukucaciswa:

Amapharamitha aseceleni we-DC:

Uhlobo lweseli: LFP 3.2V 280ah, I-Cell rated Prequety Plaet 896Wh

I-Cell Operating Voltage Range: 2.8V ~ 3.6V (Iyaguqulwa)

I-Battery Pack: 1p16s, 14.336KWHWh

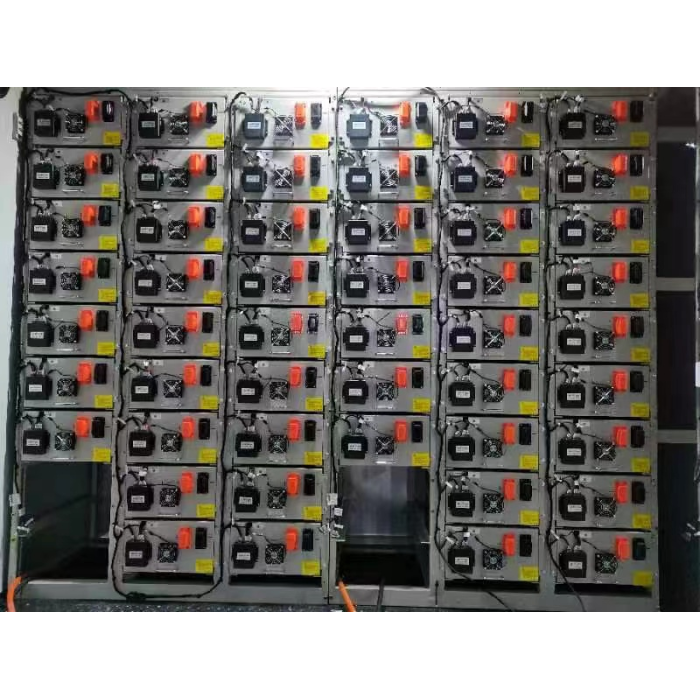

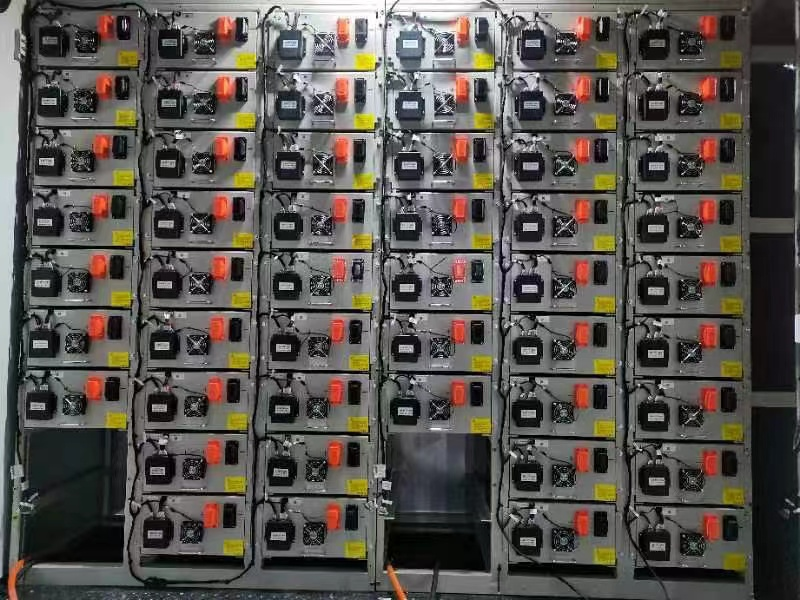

Iqoqo lebhethri: Amaphakethe webhethri ayi-15 ochungechungeni, 1p240s, 215.04kkwh

Inani lebhethri lebhethri: amaqoqo ebhethri ayi-7 ngokufana, 7p240s, 1.5MWh

I-VOLTAGE ekalwe (VDC): 768

Ukusebenza kwe-voltage ibanga (VDC): 672 ~ 864

Ukushaja / Ukukhishwa kwesilinganiso: 0.5c

Impilo yeSistimu: Imijikelezo ye-≥6000 (0.5c, 25 ° C, 90% DOD, 80% EOL)

Ukujula kokukhishwa: 90% DOD

Amandla alinganiselwe: 750kw

Ukulayisha ngokweqile: Izikhathi eziyi-1.1 zesikhathi eside, izikhathi eziyi-1,2 zemizuzu engu-1

Ukuhlanekezela okuphezulu kwenani: <3%

Amapharamitha aseceleni we-AC:

I-grid voltage yegridi nokubekezelelana: 380VAC, -15% ~ 10%

Imvamisa ye-grid ye-grid nokubekezelelana: 50 / 60hz, ± 5hz

I-Power Factor Admible Range: -1 ~ + 1 Iyashintsha

Amapharamitha ajwayelekile:

Ukusebenza kahle kwesistimu: ≥92%

Ubukhulu (Ubude * Ububanzi * Ukuphakama) ku-MM: 605824382896

Uhla lokushisa olusebenzayo: Ukushaja u-0 ° C ~ 50 ° C, Khipha -20 ° C ~ 50 ° C

Ububanzi bokulawula okushiywe kwemvelo kwangaphakathi: 25 ± 5 ° C

Ileveli yomsindo: ≤75DB @ 1m

Indlela yokupholisa: Ukubumba umoya onobuhlakani ngokupholisa umoya

Uhlelo Lokuvikela Umlilo: Ipayipi elihlanganisiwe lokucisha umlilo ngaphakathi kwepakethe + eyakhelwe umtshali wokuvikela umlilo + Ukuvikelwa komlilo okususelwa emanzini (okugciniwe)

Ileveli yokuvikela: IP54

Isifutho sikasawoti kanye nenqanaba lokumelana nokugqwala: c4

Umswakama ohlobene: 0 ~ 95% RH ngaphandle kokuvuselelwa

Ukuphakama Okuphezulu: 4000m (> 3000m Derating)

Isisindo: ≈25 amathani

Izindawo zokuxhumana: Can, Rs485, Ethernet

Izivumelwano Zokuxhumana: Can, Modbus RTU, Modbus TCP / IP

Isitifiketi: Iseli: GB / T 36276, IEC 62619, Ul 1973, ul 9540a, UN38.3; IKhabhinethi: GB / T 36276, IEC 62619, UL 1973, ul 9540a, UN38.3

I-LH-ESSC-F6S-1500 ngumlingani wakho othembekile we-Energy Storation Solutions, ukuhlinzeka ngamandla athembekile naqinile wezinhlelo eziningi ezahlukahlukene. Ngobuchwepheshe obuthuthukisiwe kanye namandla aphezulu, lolu hlelo lokugcina amandla lwe-Smart Energy Energy luqinisekisa ukunikezwa kwamandla okungaphazanyiswa noma nini futhi lapho uludinga khona.
