Uhlobo lokukhokha: T/T
Ukuthutha: Ocean
| type of battery | |
| Rated Capacity | |
| Xhumana Nanje |
I-Model No.: R-LFP48V150Ah
Ibhulogi: Umumo
Origin: Izitsha zokudlela zebumba uqobo
Isitifiketi: ISO9001, ISO 14001, ISO 45001
Isikhathi Sewaranti: 3years, 5EMINYAKA
Isicelo: izimoto zikagesi, Ama-Folklifts kagesi, Amabhayisikili kagesi / ama-Scooter, Izinqola Zegalofu, Ababhalisile, IZIKHUKU
Ukufakazela Ngencwadi: ce, UL
Indawo Yemvelaphi: I-China
Norminal Voltage[V]: 48
Total Energy [Wh]: 7220
Norminal Capacity[AH]: 150
Charging Voltage [V]: 52.5~54.0
| Ukuthengisa Amayunithi | : | Piece/Pieces |
|---|---|---|
| Uhlobo lwephakheji | : | Ibhokisi lekhadibhodi |
| Isibonelo Sesithombe | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

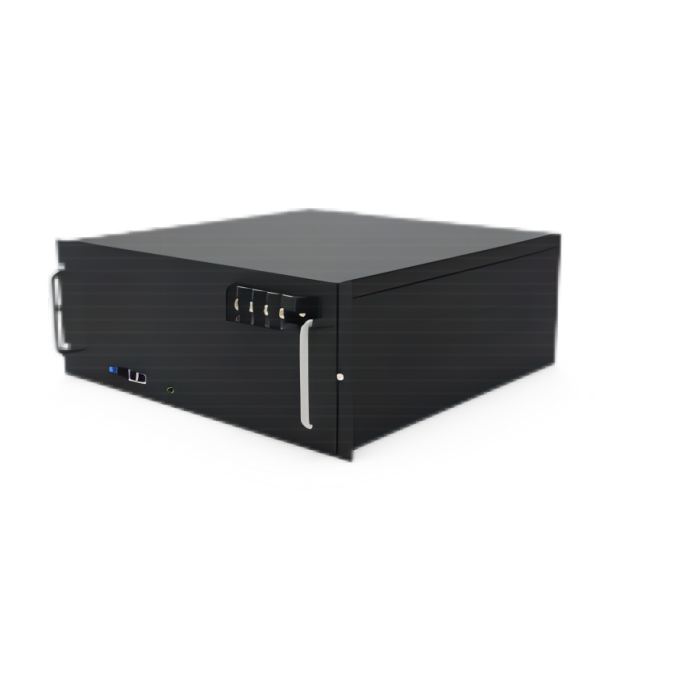

Ukubuka konke komkhiqizo - Imodeli R-LFP48V150 :
I-R-LFP48V150AH iyibhethri ephakeme kakhulu ye-lithium eyenzelwe izicelo ezifunwayo lapho umthombo wamandla oqinile futhi othembekile u-Espent IIAL. Lawa mabhethri ahlukahlukene futhi aqinisekise ukunikezwa kwamandla ezisetshenziselwa ezahlukahlukene lapho kuhlongozwa khona, amandla aphezulu okugcina amandla atholakalayo.
Izicelo:
Izici:
Ukucaciswa:
| Model | R-LFP48V150Ah |
| Cell Type LFP Prismatic cell 50Ah | |
| Internal Connection | 3P15S |
| Nominal Voltage [V] 51.2 | |
| Nominal Capacity [Ah] | 150 |
| Total Energy [Wh] | 7220 |
| Dimension (W*D*H,mm) | 442*400*260 |
| Weight [Kg] | 70 |
| Max. Charging Current [A] | 100 |
| Max. Discharging Current [A] 100 | |
| Pulse Discharge Current | 120A@1S |
| Charging Voltage [V] | 52.5~54.0 |
| End of Dicharge Voltage [V] | 42.0(Backup Application)/45(Cycle Application) |
| Operation Humidity 0~95% RH (No condensing) | |
| Operating Temperature Range | Charge:0～+50°℃; Discharge:-20～+55°℃ |
| Cycle Life | >3500 |
| Designed Calendar Life | 10 Years |
| Communication interface RS232,RS485,CAN | |
| Protection | Over voltage, Low voltage, Over current, Over Temperature, Low Temperature, Short circuit |
| Parallel Support Yes, Max.15 Sets | |
| Series Support | Not support |
| Optional Parts | MCB;LCD display; Gyroscope Anti-theft;SNMP module. |
Ukupakisha: Ibhokisi lekhadibhodi
Ukukhiqiza: 3000PC/Month
Ukuthutha: Ocean
Indawo Yomsuka: Izitsha zokudlela zebumba uqobo
Amandla Wokunikezela: 3000pc/month
Isitifiketi: ISO9001, ISO 14001, ISO 45001
I-Port: Shanghai,Shenzhen
Uhlobo lokukhokha: T/T
Incoterm: FOB,EXW
