I-Model No.: PCDC-YZ2-EU30/1k
Ibhulogi: Umumo
Indawo Yemvelaphi: I-China
Input Voltage: 3-phase 400VAC±10%
Output Voltage: DC200~1000V
Power Conversion Efficiency: ≥95%
Connector Options: 1×CCS2 Cable
Cable Length: 5M
Output Rating: 30kW
| Ukuthengisa Amayunithi | : | Set/Sets |
|---|---|---|
| Uhlobo lwephakheji | : | Icala lezinkuni |
| Isibonelo Sesithombe | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

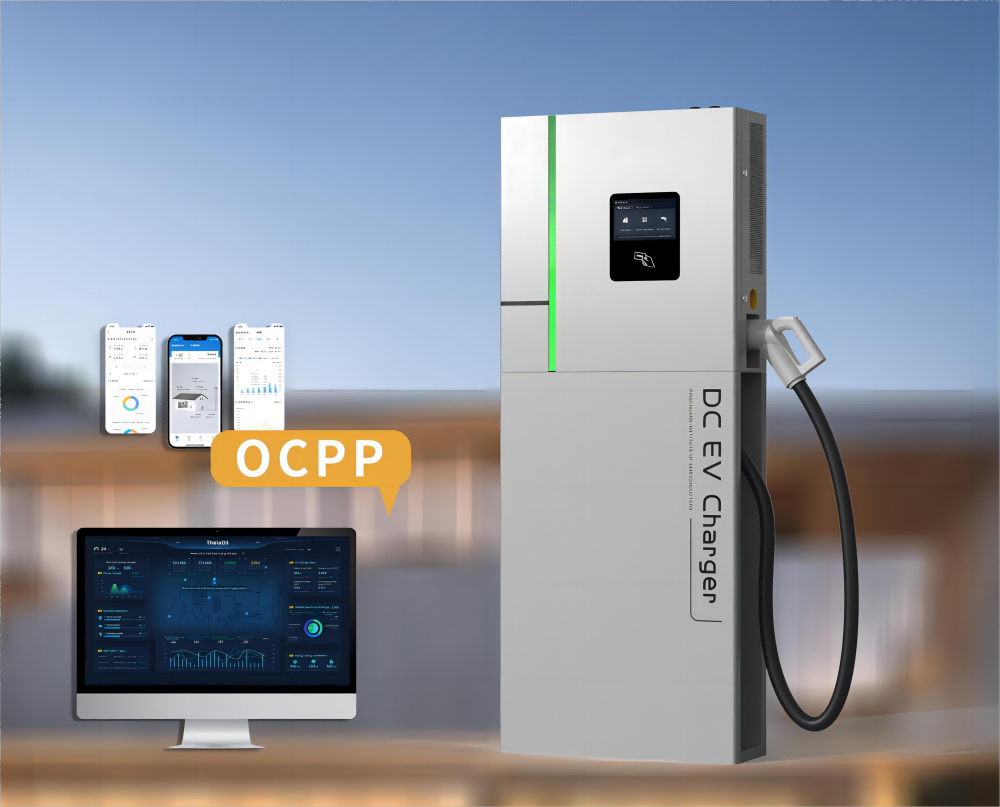

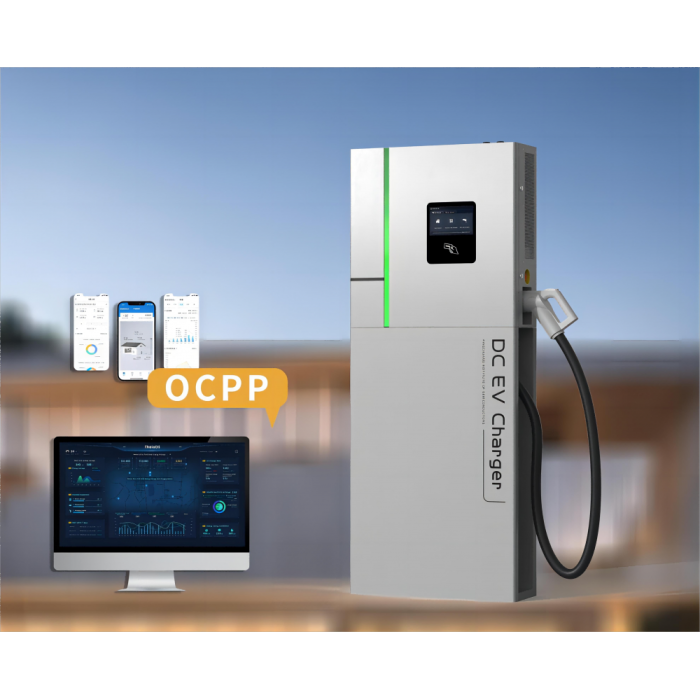

Ukubuka konke komkhiqizo: I-PCDC-YZ2-EU30 / 1K - Ijubane eliphezulu le-EV Shading Solutions
I-PCDC-YZ2-EU30 / 1K yi-EV Charging Solutions eyenzelwe njengeshaja le-EV esheshayo, okuyinjiniyela ukuletha ukusebenza ngokushesha esiteshini somphakathi noma sangasese sikagesi.
Izicelo:
Izici ezibalulekile:
Isikhombimsebenzisi esisebenziseka kalula: I-7-Inch LCD TouchScreen inikeza isipiliyoni somsebenzisi esinembile.
Ukuxhumana okukude: Xhuma nge-BLE 4.2 noma i-Wi-Fi 2.4g yokulawula okukude ngezinhlelo zokusebenza ezinikezelwe (i-Android ne-iOS).
Ezokuphepha Okokuqala: I-PCDC-WZ2-EU40 / 1K iqhosha izingqimba eziyishumi zokuvikelwa kokuphepha, ukuvikelwa ukuvuza, ukuvikelwa kokushintsha, kanye nesici sokumisa esiphuthumayo.
Ukwenza ngokwezifiso: Ukuxhaswa kwe-OEM kanye ne-ODM ngokwezifiso kuvumela ukufaka uphawu uphawu, umbala, ukusebenza, kanye nokuguqulwa kokubukeka ukufeza izidingo ezithile zemakethe.
Ukucaciswa:
Amandla okukhipha: 30kw
I-Voltage Range: DC200 ~ 1000V
Okwamanje: 0-1-125a
Ukusebenza kahle: ≥ 95%
Uhlobo lwekhebula: 1 × CCS2 ikhebula (5m)
I-voltage yokufaka: Isigaba 3-isigaba 400vac ± 10%
Imvamisa: 50hz
I-Power Factor:> 0.99
Ukuxhumana: 3p + n + pe
Khombisa: 7 "Thinta Screen
Ukuxhumana: RJ45, 4G, Wi-Fi
Iphrothokholi Ukusekelwa: OCPP 1.6J, 2.0.1J
Ukuxhumana: I-Wi-Fi 2.4G
Ukuvikelwa: ngaphezulu kwamanje, ngaphezulu kwamandla kagesi, ngaphansi kwamandla kagesi, umjikelezo omfushane, ngaphezulu kwesivinini, i-disten diode, ukuma okuphuthumayo
Uhlobo lwe-RCD: a
Ukuvikelwa Kokuhlinzwa: 20Ka
Ukunemba: ± 1%
Izinketho Zokukhokha: Uhlelo / i-RFID
Ukuvumelana kwekhadi: Iso / IEC 14443A / B
Izitifiketi: CE, CB
OTA: Kusekelwa
Ubukhulu: 670mm × 217mm × 670mm
Isisindo: 60kg
Isilinganiso Semvelo: IP54, IK10
Ububanzi bokushisa: -30 ℃ ℃ ~ 55 ℃ (Amandla agcwele), 55 ℃ ~ 75 ℃ (Umkhawulo wamandla)
Ukupholisa: Ukuphoqelelwa-umoya-kupholile
Ukuphakama: ≤ 2000m
Ileveli yomsindo: ≤ 65DB
Ukukhwela: I-Wall Mount / Pesetal
Ukupakisha: Icala lezinkuni
Ukukhiqiza: 10000pcs/year
Ukuthutha: Ocean
Indawo Yomsuka: Izitsha zokudlela zebumba uqobo
Amandla Wokunikezela: 10000pcs/year
Isitifiketi: CE, GB
Ikhodi ye-HS: 8504401990
I-Port: Chongqing,Shanghai
Uhlobo lokukhokha: T/T
Incoterm: FOB,EXW
