I-80kk ibutho elibekiwe le-DC EV Charger

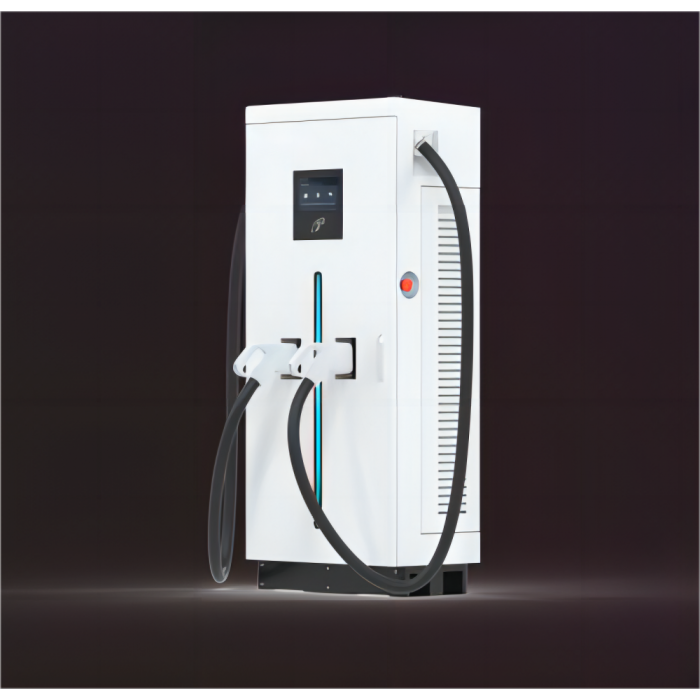

Ukubuka konke komkhiqizo: I-PCDC-YZ4-EU80 / 1K i-EV ishaja ngokushesha

Kwethulwa i-PCDC-YZ4-EU80 / 1K, ishaja entsha ye-80kw DC esheshayo eyenzelwe ukuguqula izixazululo zokushaja i-EV. Le Shaja yezwe-ye-Artger ifakwe izici ezithuthukile kanye nokucaciswa okuqinile ukuhlinzeka ukushaja okusheshayo nokwethembekile ukushaja kwezimoto zikagesi.

Izici ezibalulekile:

Ukushaja okuguqukayo: I-PCDC-YZ4-EU80 / 1K inikeza zombili izindlela zokushaja ezi-single and dual-gun, ivumela ukukhokhiswa kwamandla okuphezulu ngesibhamu esisodwa noma ukusatshalaliswa kwamandla okuqondayo lapho usebenzisa izibhamu ezimbili.

Isiqinisekiso Sokuphepha: Ngokuvikelwa kokuphepha okuningi, kufaka phakathi ukweqiwa okuphezulu, okuphezulu, ukuvela okufushane, izinga lokushisa, i-disteniode elahlekile, lesi simo esiphuthumayo, le moto iqinisekisa isipiliyoni sokushaja esivikelekile nesinokwethenjelwa.

Isikhombimsebenzisi esisebenziseka kalula: Isikrini sokuthinta esingu-7-Inch LCD sinikeza isibonisi esibonakalayo somsebenzisi sokusebenza okulula. Ngaphezu kwalokho, ukusekelwa okukude kokukhokha nokusekelwa kwemali, kanye nokulawula kohlelo lokusebenza, kwenze ilungele iziteshi zokushaja komphakathi.

Izinketho zokuxhumana: Ishaja isekela izinketho eziningi zokuxhuma, kufaka phakathi i-BLE 4.2, i-WiFi 2.4g, i-RFID, kanye nokudlala, ukuvumelanisa izindlela zokushaja eziguqukayo.

Ukwakha okuqinile: Ukulinganisa i-IP54 ne-IK10

Izicelo:

I-PCDC-YZ4-EU80 / 1K eV Ishaja ngokushesha ilungele izinhlelo ezahlukahlukene, kufaka phakathi iziteshi zokuvuselelwa ngogesi, iziteshi zokushaja komphakathi, kanye nokuthuthukiswa kwengqalasizinda yengqalasizinda. Izici zayo ezithuthukile nokusebenza okuthembekile kwenza kube ukukhetha okuhle kakhulu kunoma yisiphi isixazululo se-EV ukushaja.

Ukucaciswa:

Ukukhishwa kwamandla: 80kw

I-voltage yokufaka: DC 200 ~ 1000V

Ububanzi njengamanje: 0-200a

Ukusebenza kahle: ≥ 95%

Uhlobo lwekhebula: 2 × CCS2 Cable (5m)

I-voltage yokufaka: Isigaba 3-isigaba 400vac ± 10%, 50Hz

I-Power Factor:> 0.99

Ukucushwa kokufaka: I-3P + N + PE

Khombisa: 7 "Thinta Screen

Ukuxhumana: RJ45, 4G

Izivumelwano Zokuxhumana: I-OCPP 1.6J, 2.0.1J

Ukusekelwa: Akukho ukusekelwa kokuxhumeka kochungechunge

Ukuvikelwa: Ukweqiwa, okugcwele ngokweqile, ukwenziwa kabusha, umjikelezo omfushane, ngaphezulu kokushisa, i-diode elahlekile, ukuma okuphuthumayo

I-Residial yamanje yedivaysi (RCD): Thayipha a, 20Ka

Ukunemba: ± 1%

Izinketho Zokukhokha: Uhlelo / i-RFID

Ukuvumelana kwe-RFID: ISO / IEC 14443A / B,

Izitifiketi: CE, CB

Ukuvuselelwa okungaphezulu kwe-Air (OTA)

Ubukhulu: 700mm × 400mm × 1600mm

Isisindo: 240kg

Izilinganiso zezemvelo: IP54, IK10

Ukushisa okusebenzayo: -30 ℃ ~ 55 ℃ (Amandla agcwele), 55 ℃ ~ 75 ℃ (Amandla Okomkhawulo)

Ukushisa kwesitoreji: -40 ℃ ~ 70 ℃

Uhlelo Lokupholisa: Iphoqelelwe-air-seled

Ukuphakama: ≤ 2000m

Umsindo we-Acoustic: ≤ 65DB

Ukufaka: Uhlobo Olufudumele

Nge-PCDC-YZ4-EU80 / 1K-EV ishaja esheshayo, izixazululo ezisheshayo nezisebenzayo zokushaja kwezimoto zikagesi zitholakala. Izici zayo ezithuthukile, izindlela zokuphepha, kanye nokuguquguquka kwenza kube ukukhetha okuphezulu kuzo zombili iziteshi zokushaja zangasese nezomphakathi ze-EV.
