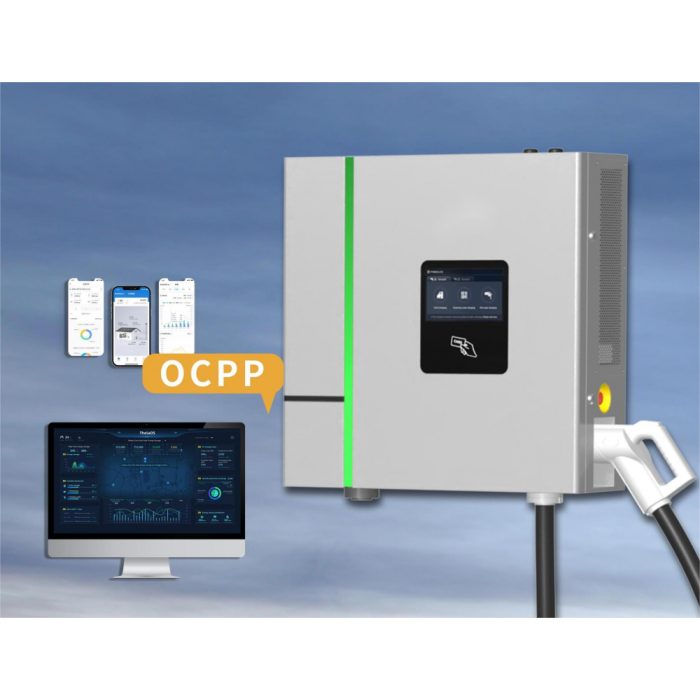

I-30kw Wall ifakwe i-DC EV Charger

Ukubuka konke komkhiqizo: I-PCAC-J5-EU22 / 400- HLALA KWAMAHHALA

I-PCDC-WZ2-EU30 / 1K iyishaja ye-DC Ed-odge DC EV eyenzelwe ukuhlinzeka ngezixazululo ezisheshayo nezisebenzayo zokushaja kwezimoto zikagesi (evs). Ngokukhishwa kwamandla kwe-30kW nobubanzi be-voltage ebanzi, leli zinga 3 Ishaja kagesi kagesi ilungele iziteshi zokushaja i-EV neziteshi zokukhokhisa ngokushesha, ukunikeza ukushaja okusheshayo nokuthembekile ukushaja kwabanikazi be-EV.

Izici ezibalulekile:

Ukukhishwa kwamandla okuphezulu: ngesilinganiso sokukhipha esingu-30kw, le Shaja ye-DC ingaletha ukushaja okusheshayo nokusebenzayo kokwakhiwa okuhlukahlukene kwe-EVS.

Ukufakwa okuguquguqukayo

Ukuxhumana okuthuthukile: Kufakwe isikrini esingu-7 "sokuthinta kanye nezindawo eziningi zokuxhumana, kufaka phakathi i-RJ45, 4G, ne-Wi-Fi, isekela amaphrothokholi we-OCPP 1.6J ne-2.0.1J.0.0.1J.19

Ezokuphepha Okokuqala: Ishaja ifaka izici eziningi zokuphepha, kufaka phakathi ukuvikelwa okuphezulu, ukuvikelwa okuphezulu, ukuvikelwa kwesisu esifushane, ukuvikelwa kokushisa ngokweqile, ukutholwa kwe-diss diode, nokutholwa okuphuthumayo kokunye.

Isebenziseka kalula: Ixhasa izindlela ezahlukahlukene zokushaja, njengokuswayipha kwamakhadi, ukuskena ikhodi ye-QR, nokufakwa kwekhodi ye-VIN, okwenza kube lula kubasebenzisi.

Ukwakha okuhlala isikhathi eside: ngesilinganiso sokuvikelwa kwe-IP54 ne-IK10, le charger ingamelana nezimo zangaphandle futhi inikeze ukusebenza okuthembekile.

Energy Esebenzayo: I-PCDC-WZ2-EU30 / 1K yakhelwe ukuba isebenze kahle amandla, ngokusebenza kokuguqulwa kwamandla kwe -≥ 95%.

Izicelo:

Le charger e-Fast EV ilungele izinhlelo ezahlukahlukene zezicelo, kufaka phakathi izixazululo zokushaja izimoto zikagesi, iziteshi zokushaja kwe-DC, neziteshi zokuvuselelwa kabusha ze-EV. Ingasetshenziswa ku-in-grid kanye ne-off-grid yokusetha, okwenza kube ukukhetha okuguquguqukayo ezindaweni ezahlukahlukene.

Ukucaciswa:

Isilinganiso sokukhipha: 30kw

I-Output Voltage: DC200 ~ 1000V

Okukhipha manje: 0-100a

Ukusebenza kahle kwamandla: ≥ 95%

Izinketho zesixhumi: 1 × CCS2 Cable

Ubude bekhebula: 5m

I-voltage yokufaka: Isigaba 3-isigaba 400vac ± 10%

Imvamisa: 50hz

I-Power Factor:> 0.99

I-Wiring: 3p + N + PE

Khombisa: 7 "Thinta Screen

Ukuxhumana: RJ45, 4G, Wi-Fi

Iphrothokholi Yokuxhumana: I-OCPP 1.6J, 2.0.1J

Izici Zokuphepha: Ukweqa ngokweqile, okugcwele ngokweqile, ukwenziwa kabusha, umjikelezo omfushane, ukuvikela izinga lokushisa, i-disten diode, ukuma okuphuthumayo

RCD: RCD Thayipha a

Ukuvikelwa Kokuhlinzwa: 20Ka

Ukunemba kokulinganisa amandla: ± 1%

Ukulawulwa kokufinyelela: uhlelo lokusebenza / i-RFID

I-RFID: ISO / IEC 14443A / B

Ukuhambisana nokuphepha: CE, CB

Eminye imisebenzi: OTA

Ubukhulu: 670mm × 217mm × 670mm

Isisindo se-Net: 60kg

Amadigri wokuvikelwa: IP54, IK10

Ukushisa okusebenzayo: -30 ℃ ~ 55 ℃ (Amandla agcwele), 55 ℃ ~ 75 ℃ (Amandla Okomkhawulo)

Ukushisa kwesitoreji: -40 ℃ ~ 70 ℃

Ukupholisa Amandla: Ukuphoqelelwa-umoya-kupholile

Ukusebenza / Ukulondolozwa komswakama: ≤ 95%

Ukuphakama: ≤ 2000m

Umsindo: ≤ 65DB

Izinketho Zokukhuphuka: Bamba ubakaki, i-Wall Mount

OEM ngokwezifiso Izinketho: logo, igama lesisekelo, incwajana yomsebenzisi, ubude bekhebula lokushaja

Phakamisa ingqalasizinda yakho ye-EV yokushaja nge-PCDC-WZ2-EU30 / 1K, ukunikela ngezixazululo ezisheshayo nezisebenzayo zokushaja kwezimoto zikagesi. Izici zayo ezithuthukile, ukwakhiwa okuqinile, futhi izinhlelo zokusebenza eziguquguqukayo zikwenza kube yisinqumo esihle sekusasa lokushaja kwe-EV.

Isixazululo sinikeza izidingo zakho ezahlukahlukene.
