Uhlobo lokukhokha: T/T
Ukuthutha: Ocean
I-Model No.: RT-INV-5KW
Ibhulogi: Umumo
Isikhathi Sewaranti: 5EMINYAKA
Insiza Yokufaka Yamahhala: cha
Indawo Yemvelaphi: I-China
Umsebenzi: Ikhaya, Ezentengiso
Uhlobo Lwe-Solar Panel: I-Monocrystalline Silicon, I-Polycrystalline Silicon
Uhlobo Lwebhethri: ILithium Ion, Ukuhola-acid
Uhlobo Lomlawuli: MPPT
Indlela Yokufaka: Ukukhweza phansi, Ukukhweza kophahla
Maximum PV Input Power: 6000W
Maximum Charging Current (AC +PV): 100A
Rated Output Power: 5000W
Standard Battery Voltage: 48VDC
Battery Voltage Range: 40VDC~60VDC ±0.6V
Maximum PV Input Current: 22A
| Ukuthengisa Amayunithi | : | Piece/Pieces |
|---|---|---|
| Uhlobo lwephakheji | : | Ibhokisi lekhadibhodi |
| Isibonelo Sesithombe | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

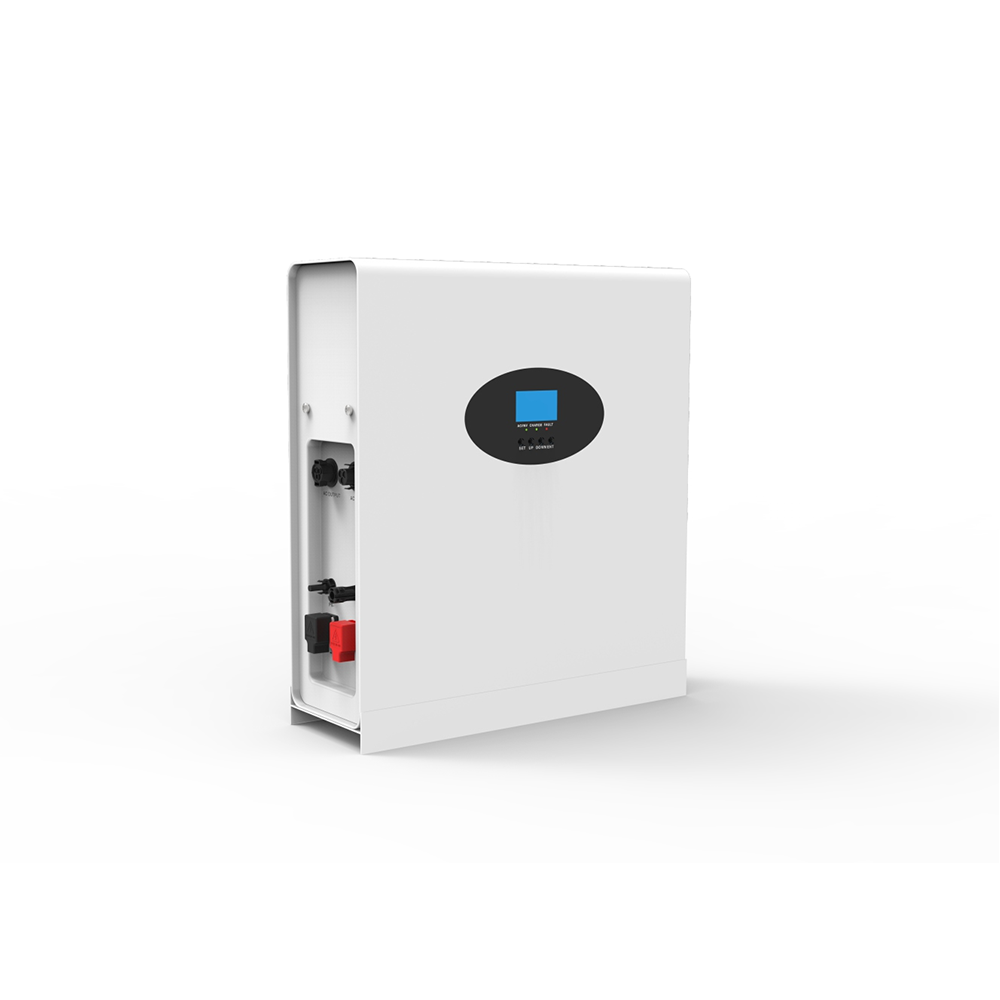

Ukubuka konke komkhiqizo: I-INV-5KW-EU-220VAC:
Kwethulwa ama-inverterers ethu e-hybrid solar - Imodeli-5kw-eu-220vac isebenza njengabo bobabili i-inverters yasekhaya ne-grid-tie solar amandla elanga ukuze aqinisekise amandla okunikezwa amandla aphelele. Ngamandla alinganiselwe we-5000va / 5000W, anikeza ukuthembeka nokusebenza kahle kwezicelo ezahlukahlukene.
Izicelo:
- I-Hybrid Solar Power Inverter: hlanganisa umthungo amandla elanga ekuxubeni kwamandla ekhaya lakho, kunciphisa ukuncika kugridi.
- Amandla okusekelayo asekhaya: Khonza njenge-inverter enamandla yokusebenzisa ekhaya, eqinisekisa amandla angaphazanyiswa ngesikhathi sokuphuma.
- I-Grid-Tie Solar Inverter: Nikela amandla ngokweqile emuva kugridi, ukulungiselela ukusebenza kahle kwamandla.
Izici:
Ukuvumelana kwebhethri: Yakhelwe amabhethri e-lithium nge-48VDC yebhethri Voltage.
Amandla wokufaka we-PV aphezulu: Sekela kuze kufike ku-6000W wamandla wokufaka elanga.
I-AC Votage Regulation: Gcina i-Sterable Ac Output Voltage (230VAC ± 5% @ 50 / 60hz wemodeli 1 no-120VAC ± 5% @ 50 / 60hz wemodeli 2).
Amandla wokuhlinzwa
Ukusebenza kahle: Ukusebenza kahle kwama-93% kuqinisekisa amandla kahle.
Igagasi le-Sine Emsulwa: Ihambisa amandla ahlanzekile futhi athembekile.
Ishaja ye-AC: Shaja ibhethri nge-60a ukushaja okwamanje.
Izitifiketi: Kuhambisana ne-CE, IEC62109-1 / 2, ETL, UL1741C22.2 NO.107.1, nokuningi.
Ukucaciswa:
Uhlobo lwebhethri: I-Lithium
Ukushaja Okuphezulu Kwamanje (AC + PV): 100a
Amandla wokufaka we-PV aphezulu: 6000w
I-PV evulekile ye-PV Open-Circuit Voltage: 500VDC
Amandla we-AC Voltage Parallel Amandla: Yebo, kuze kufike kumayunithi ayi-6 (imodeli 1)
Dlulisa isikhathi: 10ms ejwayelekile, 20ms max
Ubukhulu: 520 * 566 * 165 mm
INV-5KW-EU-220Vac INV-5KW-AM-110Vac Battery BatteryVoltage 48VDC MaximumChargingCurrent(AC+PV) 100A BatteryType Lithium SolarInput MaximumPVInputPower 6000W MPPTRange@OperatingVoltage 120VDC-450VDC MaximumPVInputCurrent 22A NumberofMPPTrackers 1/1 MaximumPVOpen-circuitVoltage 500VDC MaximumSolarChargeCurrent 100A ACOutput RatedPower 5000VA/5000W ACVolParallelCapability Yes,6unitsmaximum ACVoltageRegulation 230VAC±5%@50/60Hz 120VAC±5%@50/60Hz SurgePower 10000VA Eciency(Peak) 0.93 Waveform Puresinewave TransferTime 10mstypical,20msMax ACChargerData ChargeCurrent 60A 60A ACInputVoltage 230Vac 120Vac SelectableVoltageRange 170-280Vac 90-140Vac FrequencyRange 50Hz/60Hz(Autosensing) PhysicalData ProtectionDegree IP20 Dimension(W/H/D) 520*566*165 NetWeight 26Kg Others Certificate CE(IEC62109-1/2)/1-6PCS ETL(UL1741C22.2NO.107.1) Humidity 5%to95%RelativeHumidity(Non-condensing) EMCCertificationLevel EN61000,C2 Altitude <2000m OperatingTemperature 0°C-55°C StorageTemperature -15°C-60°C
Ukupakisha: Ibhokisi lekhadibhodi
Ukukhiqiza: 2000PC/Month
Ukuthutha: Ocean
Indawo Yomsuka: Izitsha zokudlela zebumba uqobo
Amandla Wokunikezela: 200pc/day
Isitifiketi: CE(IEC62109-1/2); ETL(Ul1741C22.2NO.107.1)
I-Port: Shanghai,Shenzhen
Uhlobo lokukhokha: T/T
Incoterm: FOB,EXW
