Ukubuka konke komkhiqizo - I-Inverter yebhethri LH-P1:

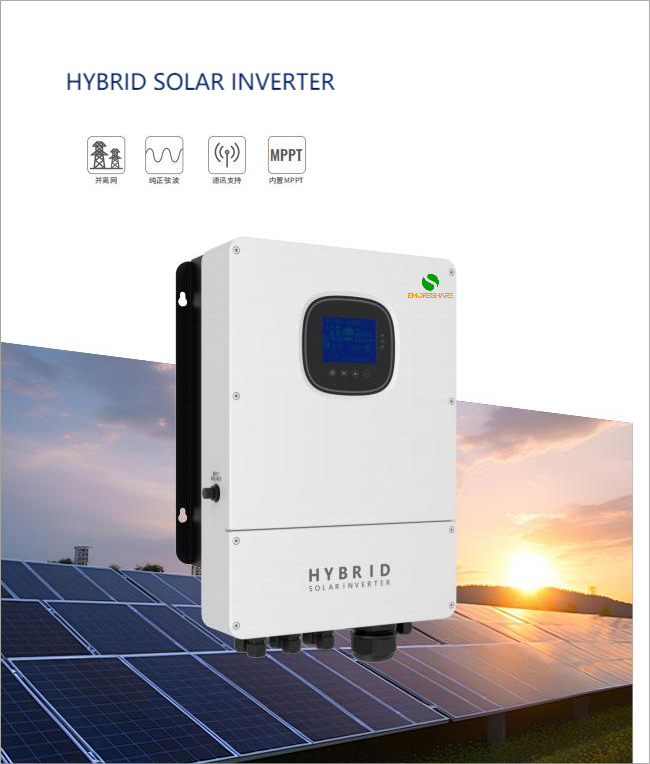

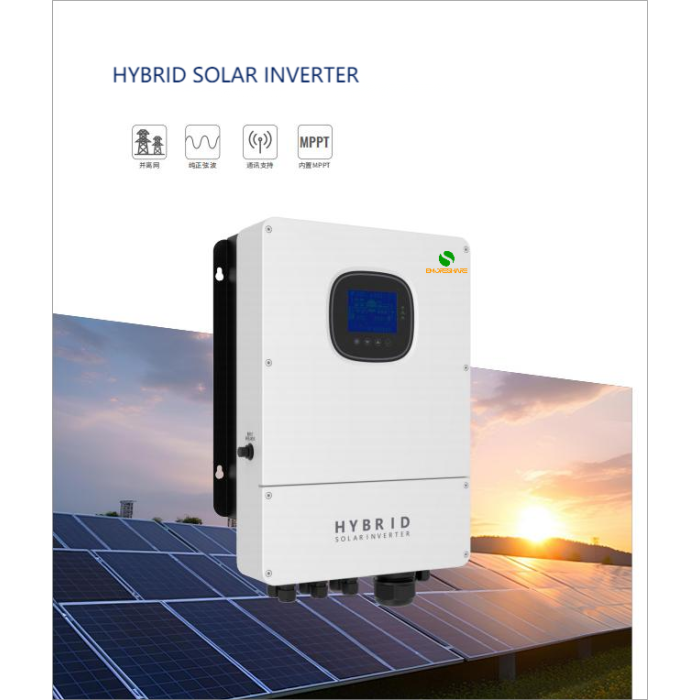

Kwethulwa i-LH-P1, inverter ethembekile engu-5500W elungele uhla lwezicelo. Lesi silo sisekela izinhlobo ezahlukahlukene zebhethri futhi zenzelwe uhlelo lokugcina amandla ekhaya kanye nohlelo lokugcina oluthengiswayo lwezentengiselwano.

Izicelo:

I-Solar Home System Inverter: Ngempumelelo i-Solar Energy yelanga yakho.

Ibhethri le-Valotage eliphakeme: Qinisekisa ukunikezwa kwamandla okuthembekile ngesikhathi sokuphuma ngamabhethri ahambisanayo.

Off Grid Solar System Inverter: Ilungele izindawo ezikude ngaphandle kokufinyelela kugridi.

Izici:

Ukuvumelana kwebhethri: Ihambisana ne-Holy-Acid, GEL, nama-Lithium-Ion Battery nge-48VDC ejwayelekile yebhethri.

Amapharamitha wokufaka we-PV: Sekela i-voltage ephezulu yokufaka ye-PV ye-500VDC kanye ne-PV yokufaka yamanje yamanje ye-22A.

Ukusebenza kahle: Kuthola ukusebenza kahle kakhulu, ukuqinisekisa ukusetshenziswa kwamandla okulungele.

Ishaja ye-AC: Shaja amabhethri akho ngentengo ephezulu ye-100A.

Ukuvikelwa: Kufakwe izici ezahlukahlukene zokuphepha, kufaka phakathi ukuvikelwa kokushintsha.

I-wavexform yokuphuma: ikhiqiza igagasi elihlanzekile line ngamandla ahlanzekile futhi athembekile.

Ukufaka: Kulungele ukufakwa okufakwe odongeni.

Ukucaciswa:

Amandla alinganiselwe: 5500w

I-Standard Battery Voltage: 48VDC

Ibanga le-Voltage Voltage: 40VDC ~ 60VDC ± 0.6VDC

I-PV evulekile ye-PV Open-Circuit Voltage: 500VDC

I-PV esebenza ama-voltage ibanga: 120-500VDC

I-MPPT Voltage Range: 120-450VDC

Ukufakwa okuphezulu kwe-PV okwamanje: 22a

Amandla wokufaka we-PV aphezulu: 600w

I-Maximum AC ishaja yamanje: 60a

I-AC Faka Voltage Range: 220 / 260VAC

Uhla lwe-Voltage olukhethiwe: Imodi ye-UPS (170vac ~ 280VAC) ± z%, imodi ye-generator (90vac-280VAC) ± 2%

I-wavexform yokuphuma: i-wave emsulwa sine

Amandla okukhishwa alinganiselwe (VA): 6600va

Amandla okukhishwa alinganiselwe (W): 5500W

I-Peak Power: 11000W (1 ~ 3S)

Ukusebenza kahle:> 90%

Ileveli yokuvikela: IP65

Ubukhulu: 555345182mm

Isisindo: 19.2kg

Lawa ma-inverter anakekela izidingo zamandla ahlukahlukene, kusuka endaweni yokuhlala kuya kwezohwebo, futhi anikeze amandla aphezulu kanye nokwethembeka, abenze zibe nezinketho ezifanele zezidingo zakho zamandla.
